De-slagging equipment

Share to:

In the plasma and flame cutting, the slag and flash edge will be generated at the edge of the workpiece. The SD1300-2D/SBG1000 de-slag station is processed by two devices.

  • SD1300-2D/SBG1300

   Applications:

In the plasma and flame cutting, the slag and flash edge will be generated at the edge of the workpiece. The SD1300-2D/SBG1000 de-slag station is processed by two devices. The first device SD1300-2D is used for the upper and lower slag cleaning,with the alloy steel column boring head, it can removes most of the dross with high efficiency. The second unit, SBG1300, is used for the upper and lower residual slag cleaning and smooth edges.

With the front and rear power roller table, the original dimensional accuracy can be kept unaffected, and a high quality uniform micro chamfering effect can be obtained.


   Ideal parts:

Plasma, flame cutting large flat parts.


   Machine characteristic overview:

  • Conveyor feed through type, high efficiency

  • Alloy steel column grinding station + strong abrasive belt + brush box station

  • The two units can be machined individually

  • Wet dust collector

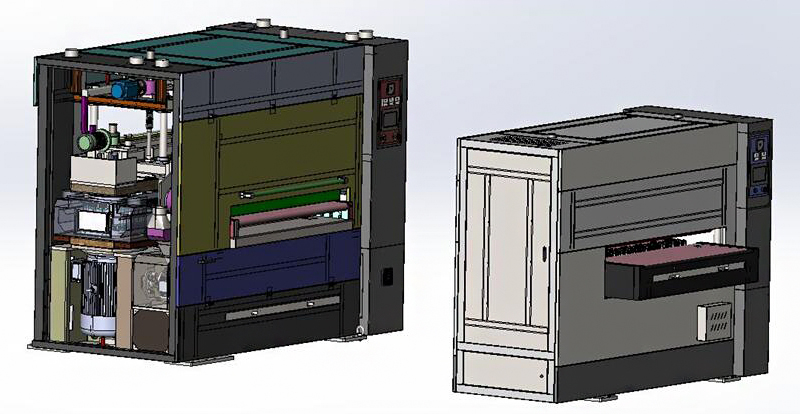

A7


Technical Datasheet

Working thickness

1300mm

Machine opening

0-100mm

Conveyor feeding rate

0.5-5m/min

Abrasive belt head power

2.2kw+2.2kw

Brush box station power

7.5KW+7.5KW

Alloy steel column belt drive power

7.5KW+7.5KW

Size of alloy steel column brush plate

Dia. 165mm  20pcs

Size of abrasive brush

35X55mm  140pcs

Consumables

alloy steel column + strong abrasive belt + sand / scotch brite brush
