Laser cutting parts deburring and edge rounding machine focused on contours and edges ONLY

Share to:

SGB1000 does a fantastic job on deburring and edge rounding of parts after laser cutting. It keeps original part size, in the meantime cleans the burrs and creates minor rounded edges.

  • SGB1000

  Applications :

SGB1000 does a fantastic job on deburring and edge rounding of parts after laser cutting. It keeps original part size, in the meantime cleans the burrs and creates minor rounded edges. The unique work station configurations would have only minimum touching on the whole surface, but focus on the edges and contours, therefore greatly saving the consumable, and keeping majority of the surface intact.


  Machine characteristic overview:

  • Conveyor feed through type, high efficiency

  • Narrow abrasive belt head for sanding out the burrs on the edges and contours, horizontal crossbelt station for further edge rounding

  • Each work station can work together or individually, versatile and flexible for different requirement

  • Electro-magnetic table to accommodate small parts

  • Straight forward and user-friendly operation

  • Auxiliary LED lighting inside machine

  • Dust collection hood is installed inside the machine.

  • Small foot print

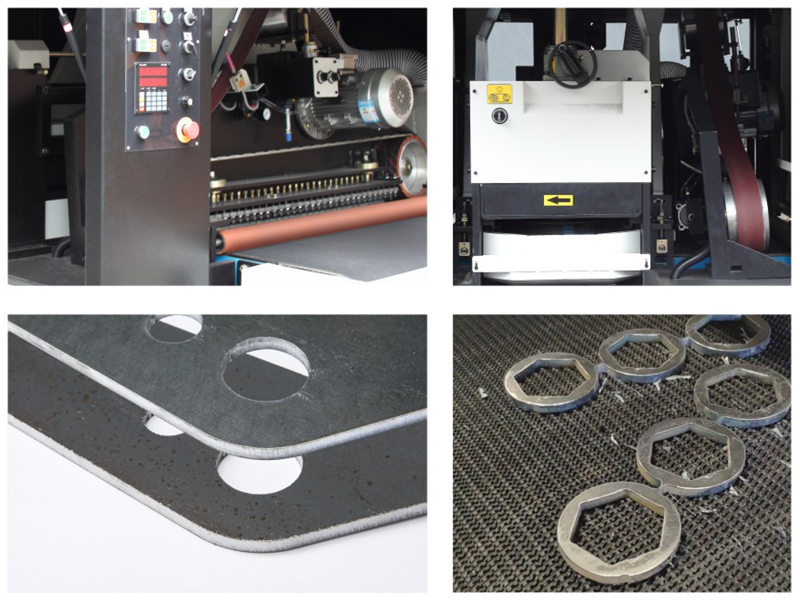

SGB1000-1


  Ideal parts:

1 Carbon steel, stainless steel, aluminum

2 Minimum part size(ferrous material): 30 x 30 mm


Optional configuration

Dry filtration barrel type dust collector with spark arrestor


Technical Datasheet

Maximum working width

1000mm

Machine opening

0-100mm

Conveyor feeding rate

0.5-5m/min

Narrow abrasive belt head power

2.2kw


Horizontal crossbelt station power

3.7kw

Machine dimension

1800x2000x2200mm

Machine weight

2000kgs
