Applications:

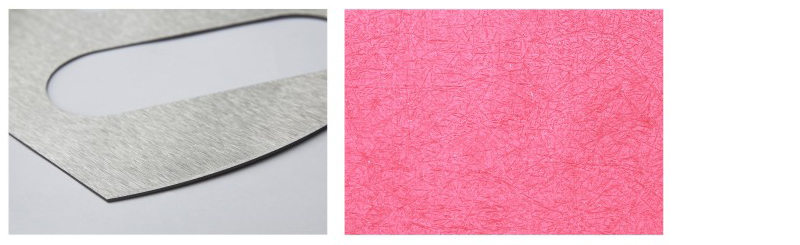

SG630-WJS is an entry level wet operation wide abrasive belt sanding machine. It is suitable on processing materials such as aluminum alloys, magnesium alloys, titanium, zircon, and stainless steel. It is equipped with an automatic filtration unit for recycling the cutting fluid. Due to the cooling effect from wet operation, above mentioned work piece will not deform during the process, and will have better surface result.
Machine characteristic overview:
Wet operation
Conveyor feed through type, high efficiency
Robust Jonsen patented belt automatic tracking mechanism
Four pillar lifting of conveyor bed
Oil, acid, and alkali resistant conveyor belt
Internal mounted motor inside machine frame
Straight forward and user-friendly operation
Auxiliary LED lighting inside machine
Automatic cutting fluid filtration unit
Ideal parts:
aluminum alloys, magnesium alloys, titanium, zircon, and stainless steel
Optional configuration |
1. Multi stage wide abrasive belt heads available to achieve final desired surface finishing result |
2. Magnetic conveyor bed to accommodate and process small ferrous material parts |
3. Maximum working width available between 600 mm to 2100 mm |
Technical Datasheet | |||
Maximum working width | 600mm | Working thickness range | 0.5-70mm |
Minimum working length | 270mm | Wide abrasive belt size | 1900x630mm |
Conveyor feeding rate | 2-11m / min | Total power | 8.99kw |
Machine dimension | 2050x1450x2100mm | Machine weight | 1500kgs |
