SG630-JS
Availability: | |
---|---|
| |
Applications:

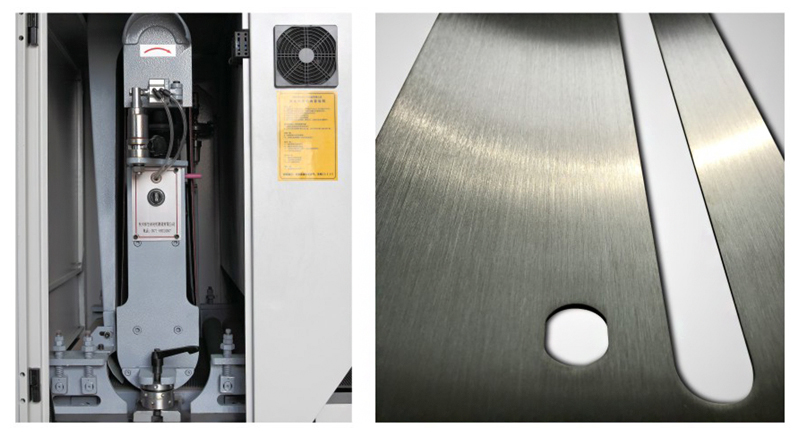

SG630-JS is an entry level wide abrasive belt sanding machine. It has been serving in the industry since Jonsen’s first establishment. As of now, there are over 1000 customers benefiting from SG630-JS’s robust and efficient machine performance. It is capable of general surface sanding including removing deep scratches, surface finishing, oxide layer removal, and more.
Machine characteristic overview:
Dry operation, therefore low production and maintenance cost. The machine usually has a long life which means the return on investment is high
Conveyor feed through type, high efficiency
Robust Jonsen patented belt automatic tracking mechanism
Four pillar lifting of conveyor bed
High temperature resistant conveyor belt
Internal mounted motor inside of machine frame
Straight forward and user-friendly operation
Auxiliary LED lighting inside machine
Dust collection hood is installed inside the machine
Ideal parts:
Stainless steel, aluminum, and all non-ferrous metals
Optional configuration |
1. Multi stage wide abrasive belt heads to be able to achieve final desired surface finishing result |
2. Magnetic or vacuum conveyor bed to accommodate and process small parts |
3. Maximum working width available between 600 mm to 2100 mm |
4. Dust collector |
Technical Datasheet | |||
Maximum working width | 600mm | Working thickness range | 0.5-70mm |
Minimum working length | 270mm | Wide abrasive belt size | 1900x630mm |
Conveyor feeding rate | 2-11m / min | Total power | 8.61kw |
Machine dimension | 1650x1350x1850mm | Machine weight | 1100kgs |
Dust extraction capacity required | 3000m³ / h |
