Applications:
SG1030-WJS+DB would be best suitable for wet operation deburring, edge rounding, as well as surface sanding and finishing of punching, shearing, laser cutting parts. It is able to efficiently clean and smoothen sharp edges as well as significantly improve surface roughness.
Machine characteristic overview:
Wet operation, there will be no deformation of parts during the process, therefore better surface result
Conveyor feed through type, high efficiency

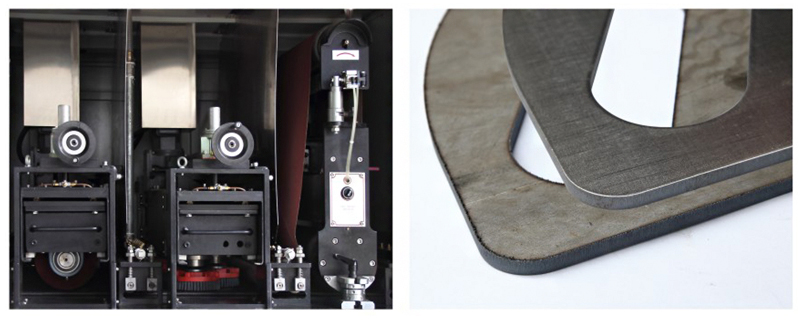

First wide abrasive belt head for initial sanding, and zig-zag disk brush station for deburring and edge rounding. Last polishing barrel brush station for fine polishing on the surface. Each station can work individually or together
Other combinations of work station are also available
Optional magnetic conveyor bed to accommodate and process small parts
Straight forward and user-friendly operation
Auxiliary LED lighting inside machine
Automatic cutting fluid filtration unit
Ideal parts:
All non-ferrous metals, thermal sensitive materials, and etc.
Thickness range: 1mm-80mm, larger machine opening up to 110mm is available
Optional configuration |
1. A combination of multi zig-zag disk brush station using various kinds of abrasive medias for deburring, edge rounding, and improving surface roughness. |
2. Double stage heavy duty wide abrasive belt heads available for heavy slags removal and edge cleaning. |
3. Multi stage wide abrasive belt heads available to achieve final desired surface finishing result. |
4. Maximum working width available is 1280 mm. |
5. Maximum 4 work stations configuration. |
6. Wet vacuum conveyor is available. |
Technical Datasheet | |||
Maximum working width | 1000mm | Consumables | Disk brushes (various type available), polishing barrel (various type available), wide abrasive belt |
working thickness range | 1-80mm | Disk brush station power | 7.5kw |
Conveyor feeding rate | 2-9m / min | Wide abrasive belt power | 11kw |
Disk brush dimension | ɸ165mm | Polishing barrel brush power | 7.5kw |
Machine weight | 3500kgs | ||
