Whole sheet surface sanding, grinding & finishing machine model

Share to:

SG1650-WJS+B is widely used in the applications of whole sheets or large scaled parts precision grinding to certain thickness, precision surface sanding to certain surface roughness, and etc.

  • SG1650-WJS+B

SG1650-WJS+B is widely used in the applications of whole sheets or large scaled parts precision grinding to certain thickness, precision surface sanding to certain surface roughness, and etc. Suitable materials includes titanium, molybdenum, aluminum, stainless steel, and carbon steel.


   Applications:

SG1650-WJS+B is capable of following applications: precision grinding to certain thickness, precision surface sanding to certain surface roughness, surface roughening, surface finishing & polishing, and etc. The conveyor table can be configured to reciprocating movement, hence especially for large and heavy parts, it can be processed by the work stations with multiple passes. By exchanging different grit wide abrasive belt, specific surface requirement can be achieved. Work stations are modular and configurable to achieve specific requirements, for example double wide abrasive belt heads, single wide abrasive belt head + polishing barrel station, and etc.


   Machine characteristic overview:

  • Wet operation

  • SKF precision bearings are used to achieve optimal performance and durability

  • Heavily constructed machine frame for longer machine life span

  • Rubberized roller type conveyor to provide smooth feeding

  • Optional connecting roller conveyors at machine entrance and exit for feeding and receiving long and heavy parts, sync height movement with the machine

  • Automatic cutting fluid filtration unit

  • Optional reciprocating type processing

  • Maximum working width: 1300mm/1650mm/1900mm

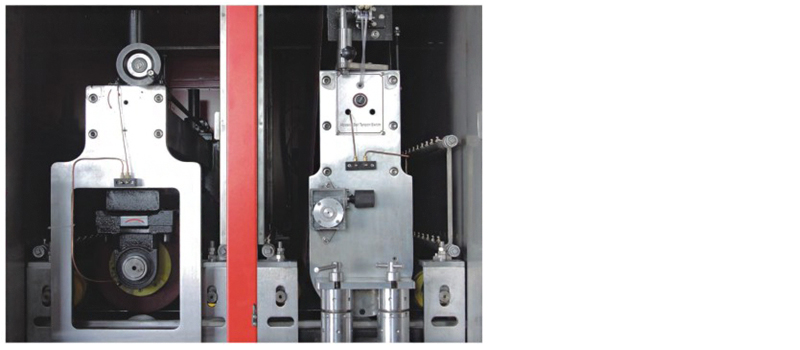

SG1650-WJS + B-1

Optional configuration

Modular and various combinations of wide abrasive belt heads and polishing barrels are available


Technical Datasheet

Maximum working width

1580mm

Working thickness range

0.5-40mm

Minimum working length

700mm

Wide abrasive belt dimension

1650x2620mm

Conveyor feeding rate

2-18m / min

Total power

97.5kw

Machine dimension

3500x3300x2260mm

Machine weight

8000kgs
