Applications:
SG2500-2 is widely used for surface finishing, polishing, and weld bead sanding of formed parts such as boxes, cabinets, and etc. It is the perfect machine to replace manual sanding.
Capabilities:

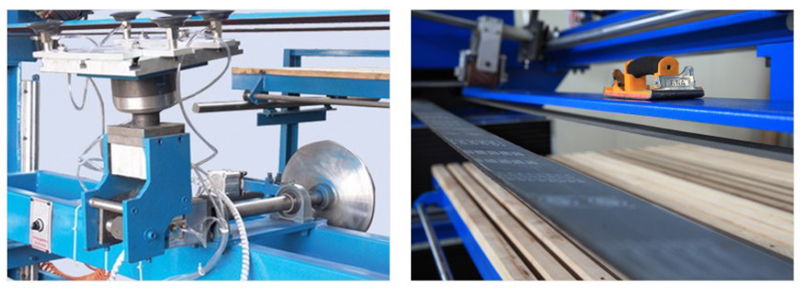

SG2500-2 has two abrasive belt heads parallel to each other. Various type and grit of abrasive belt can be installed for specific applications. It is equipped with double working tables: patented vacuum holder for holding and affixing small enclosures, and the standard working bench for placing large enclosures and cabinets. It is ideal in processing electrical cabinets and enclosures.
Technical Datashett | |||
Maximum working width | 1500mm | Dust extraction capacity required | 3000m ^ 3 / h |
Maximum working length | 2500mm | Total power | 8.24kw |
Maximum working thickness/height | 600mm | Abrasive belt dimension | 9000x100mm |
Compressed air required | 4-6kg / m ^ 3 | Machine weight | 3500kgs |
Machine dimension | 4350x4200x2350mm | ||
