Applications:

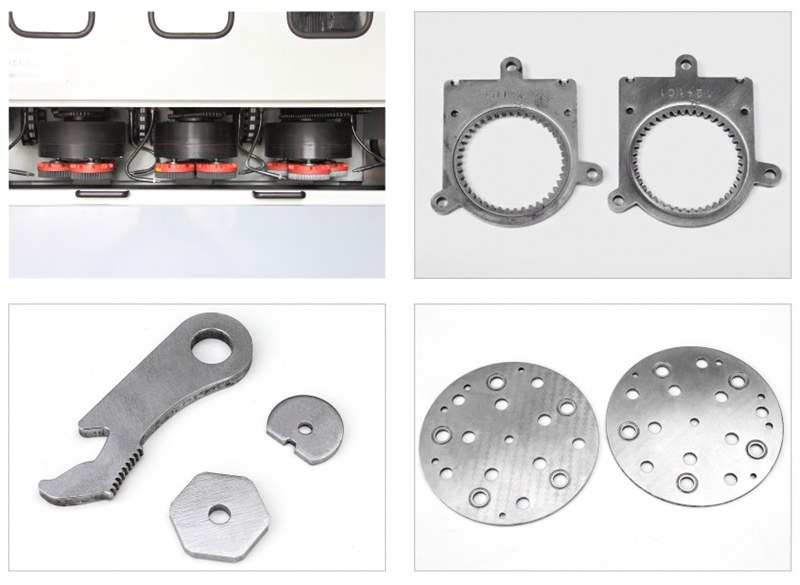

SD300-WJS+3D is ideal for deburring, edge rounding, and surface smoothening of fine blanking, punching, flat precision machined parts. It is most suitable and highly efficient for processing high volume fine blanking parts coming directly from the presses.
Machine characteristic overview:
Wet operation
4 work stations: 1 wide abrasive belt head, 3 planetary disk brush stations. Each work station has individual motorized lifting
Standard magnetic conveyor table to reduce minimum part size required. It is capable of processing most of ferrous part.
Wet operation to prolong consumable’s life span, and cool down the parts during the process to minimize parts deformation. Water soluble cutting fluid is used
Very robust machine structure, low maintenance cost
Conveyor feed through type, high efficiency
Capable of programing automatic abrasive compensation over a time frame
Automatic cutting fluid filtration unit
Optional configuration |
1. Automatic flipping and looping conveyor. |
2. Optional de-magnetizing unit at machine exit. |
Technical Datasheet | |||
Maximum working width | 300mm | Disk brush dimension | ɸ165mm |
Working thickness range | 1-200mm | Conveyor table height (fixed) | 940mm |
Conveyor feeding rate | 0.5-5m / min | Wide abrasive belt dimension | 1900x300mm |
Planetary disk brush rotational speed | 0-1480r/min (Variable speed by VFD) | Planetary rotational speed | 10-50r/min (Variable speed by VFD) |
Conveyor feeding | 0.5-5m/min Variable speed adjustable by VFD) | Total power | 23kw |
Machine weight | 4500kgs | Machine dimension | 4950x1450x2150mm |
