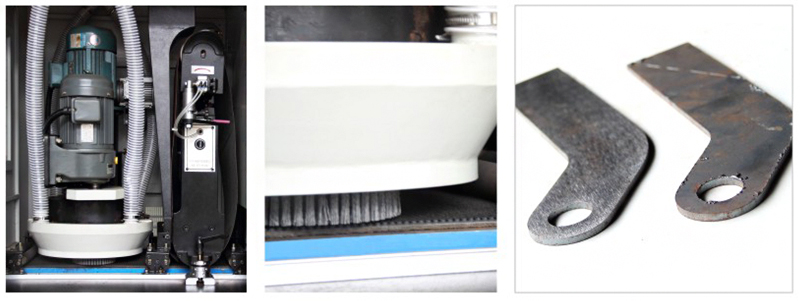

SD300-JS+D would be the optimal choice for small flat punching, fine blanking, and precision machined parts.
Applications:
Deburring, edge rounding, and flash removal for punching, shearing, laser cutting parts. It keeps parts original thickness, deburring and rounding the edges and holes on the parts. It is widely used in processing automobile parts, and precision machined parts.
Machine characteristic overview:
Dry operation
Conveyor feed through type, high efficiency
One pass for both deburring and edge rounding.
Wide abrasive belt head for sanding out bigger size burrs, planetary disk brush station for precision deburring and edge rounding
Two work stations can operate individually or together to meet each specific requirement.
Standard magnetic conveyor table to reduce minimum part size required. It is capable of processing most of ferrous parts, also configurable of vacuum conveyor table for processing stainless steel and non-ferrous parts
Straight forward and user-friendly operation
Auxiliary LED lighting inside machine
Dust collection hood is installed inside the machine.
Small machine footprint
Ideal parts:
Carbon steel, stainless steel, aluminum
Thickness range: 1mm and up
Minimum part size: 30 x 30 mm (steel)
Optional configuration |
1. For parts with bigger burrs, dual wide abrasive belt head (2JS) configuration is available. |
2. For parts with only sharp edges or minor burrs, planetary disk brush stations alone is available. Wet operation is also available. |
3. For wet operation machine, optional machine exit air knife and water squeeze is available for drying the parts. |
4. Optional de-magnetizing unit at machine exit. |
Technical Datasheet | |||
Maximum working width | 300mm | Abrasive media | Wide abrasive belt, various type disk brush available (Dupont Fiber, Sand paper+Scotch Brite….) |
Machine opening | 0-100mm | Planetary disk brush station main motor | 3kw |
Conveyor feeding rate | 0.5-3m / min | Wide abrasive belt head main motor | 4kw |
Disk brush quantity of planetary station | 3 | Machine weight | 1800kgs |
