Applications:

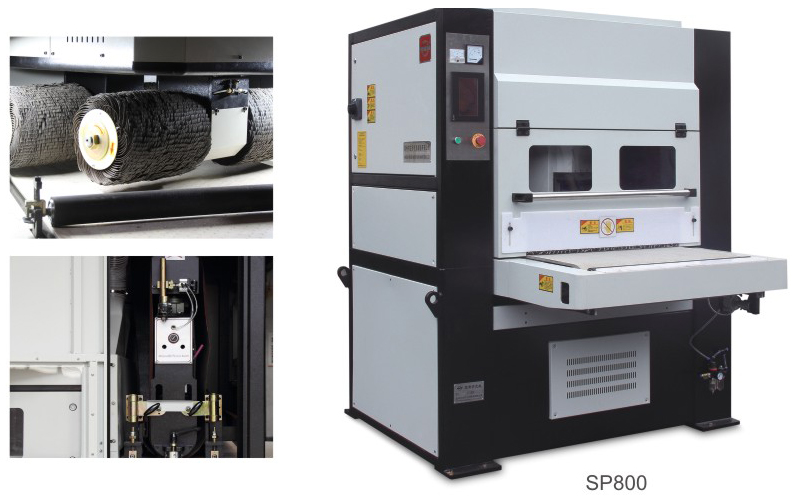

SGP800 is a very versatile machine model. The wide abrasive belt head is capable of sanding down and removing the bigger burrs on the parts, or using it for whole surface finishing purpose such as No.4 finishing. The planetary abrasive barrel station that consists of 4 abrasive barrels (2 in clockwise rotation, and 2 in counter-clockwise rotation) will further rounds the edges and the contours. It is suitable for parts from laser cutting, punching, shearing, and etc, generally with small/medium burrs and sharp edges. It produces much more consistent result of deburring and edge rounding in significantly higher efficiency than using manual tools. There will be no more metal dust just dispersing into the air, which will be efficiently extracted from the machine.
Machine characteristic overview:
Dry operation
Wide abrasive belt head for sanding out the burrs or surface finishing
Planetary type abrasive barrel station for further edge rounding, 4 abrasive barrels, and planetary rotation
Vacuum conveyor table to accommodate small parts, smallest parts available 50x50mm
Planetary abrasive barrel station will only focus on the edges and contours of the parts, minimum effect on the whole surface
Capable of processing minor formed/profiled parts
Long life span of consumables
Straight forward and user-friendly operation
Auxiliary LED lighting inside machine
Dust collection hood is installed inside the machine.

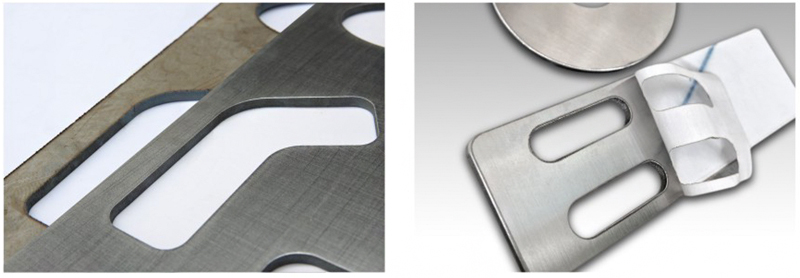

Ideal parts:
1. Carbon steel, stainless steel, aluminum, copper, and etc.
2. Parts with protective vinyl film (machine will not damage the film, therefore protect the surface underneath)
3. Working thickness range from 0.5mm-100mm
4. Carbon steel parts that require large radius on the edges
Optional configuration |
1. Additional wide abrasive belt head(s) on the front for sanding down heavier burrs or for high hardness alloy material is available, for example 2 wide abrasive belt heads. |
2. Additional wide abrasive belt head(s) on the back for straight line surface finishing is available, for example 1 wide abrasive belt head after the planetary abrasive barrel station. |
3. For carbon steel parts that requires large radius (for example 2 mm radius) on the edges, optional two units 4 abrasive barrel station in a row is available. |
Technical Datasheet | |||
Maximum working width | 800mm | Abrasive barrel station power | 5.5kw |
Machine opening | 0-100mm | Machine weight | 1600x2200x2200mm |
Conveyor feeding rate | 0.5-5m/min | Machine dimension | 1 |
No. of abrasive barrel | 4 or 4+4 | No. of wide abrasive belt head | 1-3 |
Consumables | Abrasive barrel, wide abrasive belt | ||
