Medium-thick metal parts de-slagging and edge rounding machine

Share to:

The machine is capable of efficient de-slagging and edge rounding of medium-thick metal parts after oxy-fuel, plasma, or high power laser cutting processes.

  • SDGB1000 / SDDB1000

   Applications:

The machine is capable of efficient de-slagging and edge rounding of medium-thick metal parts after oxy-fuel, plasma, or high power laser cutting processes.

1st work station is equipped with zig-zag patterned hammer type de-slagging disk station (D) for knocking out the heavy slags. 2nd work station can configure either one more hammer type de-slagging disk station (D) for further de-slagging (usually for parts with a good amount of slags) or narrow abrasive belt head (G) for sanding on leftover molten slags (usually there are molten slags at piercing point, it has to be sanded down by abrasive belt head). 3rd work station is equipped with horizontally arranged crossbelt station for final edge rounding and surface smoothening.

The advantages are significant that the machine has low cost on consumables, creates minimum noise and metal dust during the production. The operation is very straightforward and user friendly. With such 3 work station configuration, the machine can achieve the optimal performance on de-slagging. It is a perfect solution to release manual labor from tedious de-slagging work!


   Machine characteristic overview:

  • Dry operation

  • Conveyor feed through type, high efficiency

  • Multi work station combination, one pass process to take care both de-slagging and edge rounding

  • Special hammer type de-slagging disk with minimum consumable wear and optimal de-slagging performance

  • Standard magnetic conveyor bed (partial or full width), capable of processing most of small sized ferrous parts

  • Straight forward and user-friendly operation

  • Auxiliary LED lighting inside machine

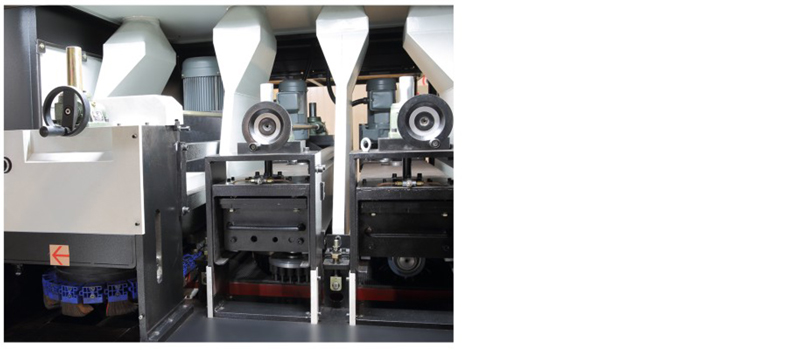

SDGB1000-SDDB1000-1


   Ideal parts:

Carbon steel, stainless steel, aluminum, and etc.

Thickness range: 1mm and up

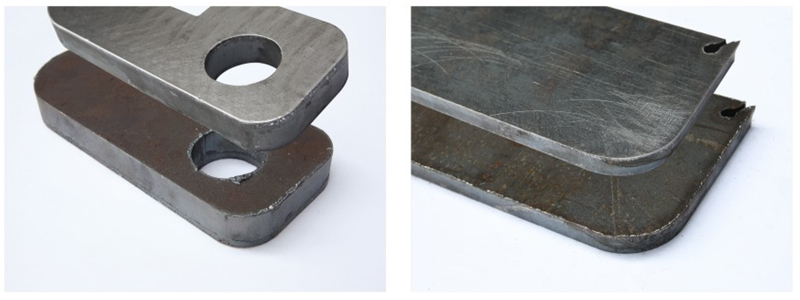

SDGB1000-SDDB1000-2


Optional configuration

1. Dry filtration barrel type dust collector with spark arrestor

2. Double side top and bottom de-slagging processing


Technical Datasheet

Maximum working width

1000mm

Working thickness range

1-80mm

Minimum working length (magnetic conductive material)

40mm

Conveyor feeding rate

0.5-5m / min

Total power

13.5kw

Machine weight

4500kgs

Machine dimension

2300x2350x1950mm
