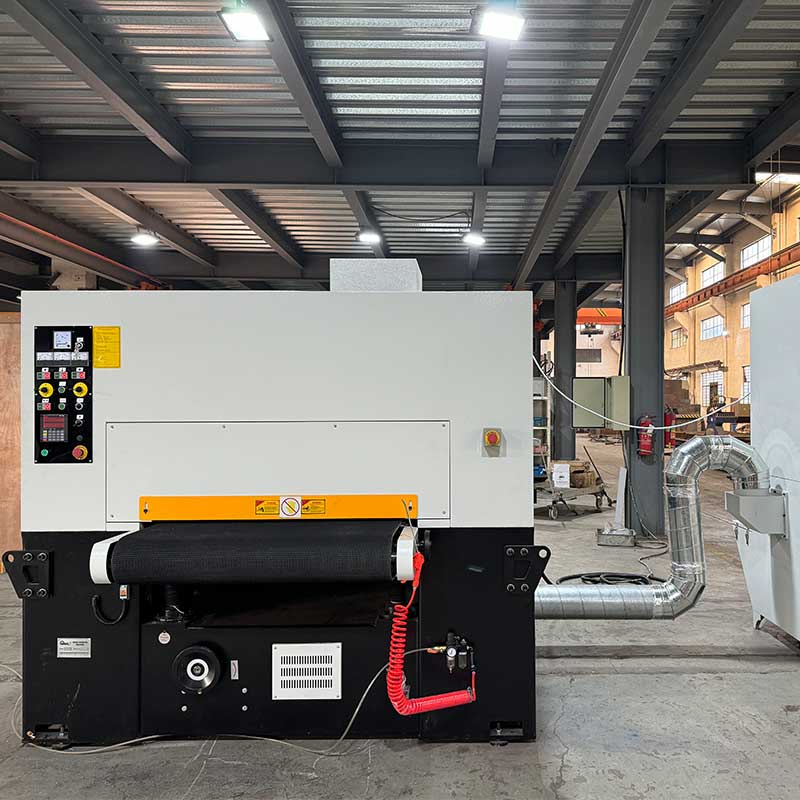

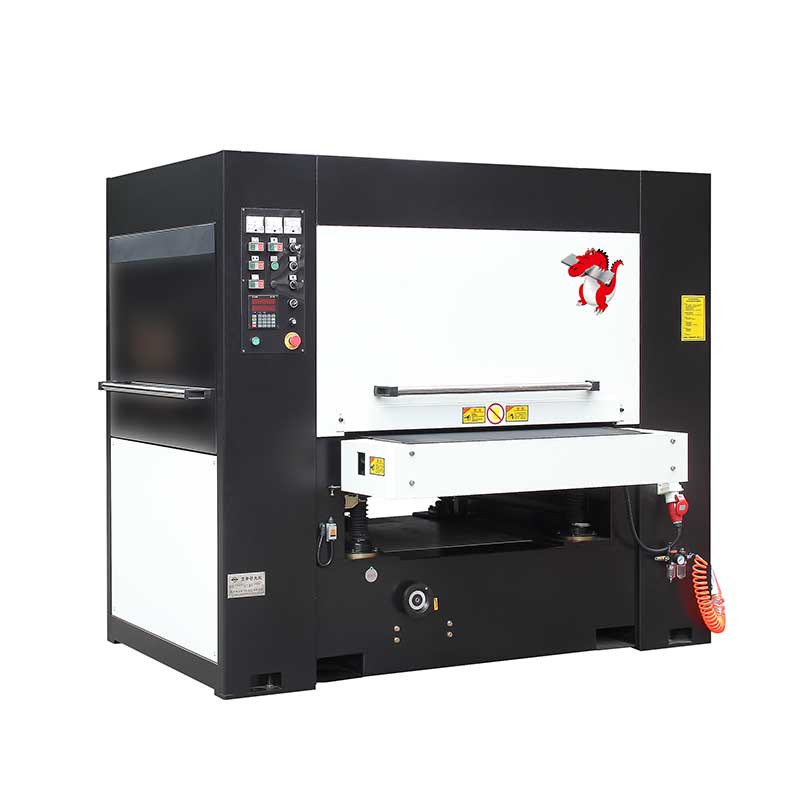

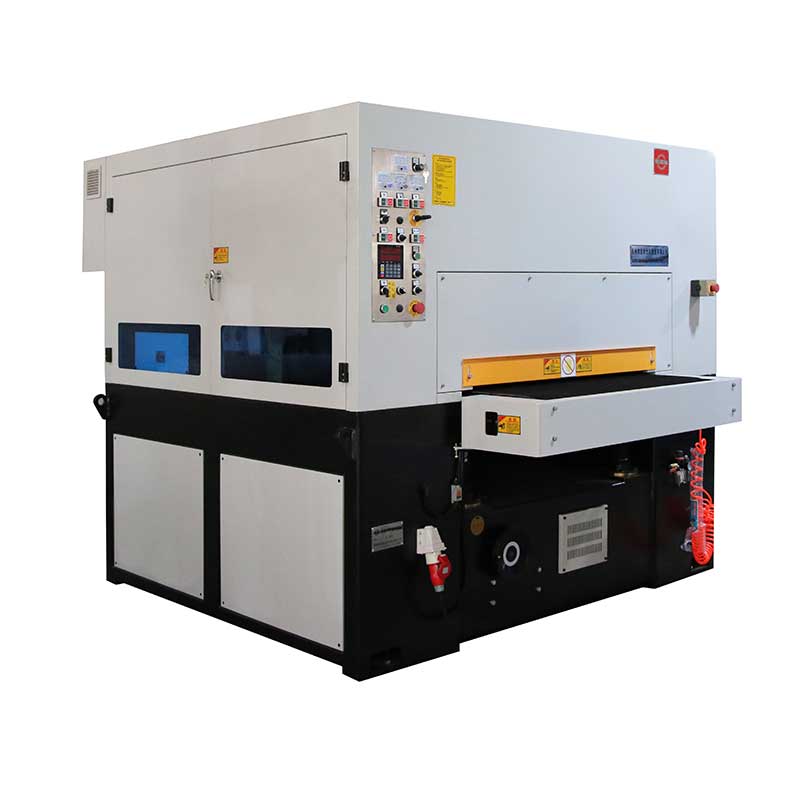

SBGB1000 Medium-thick metal parts de-slagging and edge rounding machine

  Applications :

• The machine is capable of efficient de-slagging and edge rounding of medium-thick metal parts after oxy-fuel, plasma, or high power laser cutting processes.

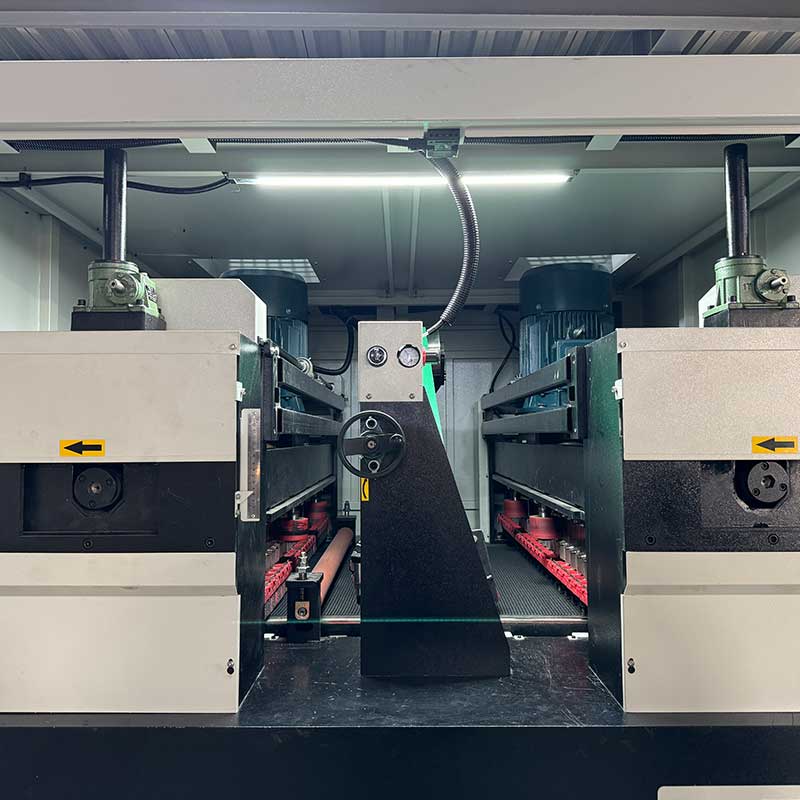

• 1^st work station and 3^rd work station the three crossbelt station which are are mounted with numerous high hardness and ant wear metal ally pin blocks and abrasive blocks that is made of dense sand paper and Scotch Brite flaps. 2^nd work station is equipped with narrow abrasive belt head (G) for sanding on leftover molten slags (usually there are molten slags at piercing point, it has to be sanded down by abrasive belt head).

• The advantages are significant that the machine has low cost on consumables, creates minimum noise and metal dust during the production. The operation is very straightforward and user friendly. With such 3 work station configuration, the machine can achieve the optimal performance on de-slagging. It is a perfect solution to release manual labor from tedious de-slagging work!

  Highlights

• Dry operation

• Conveyor feed through type, high efficiency

• Multi work station combination, one pass process to take care both de-slagging and edge rounding

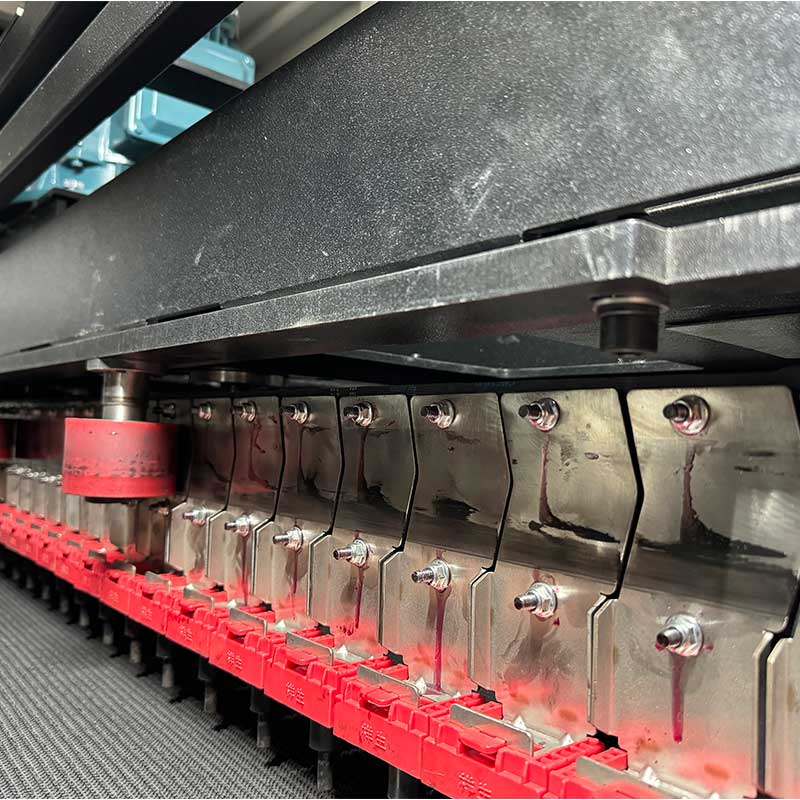

• Special hammer type de-slagging disk with minimum consumable wear and optimal de-slagging performance

• Standard magnetic conveyor bed (partial or full width), capable of processing most of small sized ferrous parts

• Straight forward and user-friendly operation

• Auxiliary LED lighting inside machine

  Optional configuration :

1. Dry filtration barrel type dust collector with spark arrestor

2. Double side top and bottom de-slagging processing

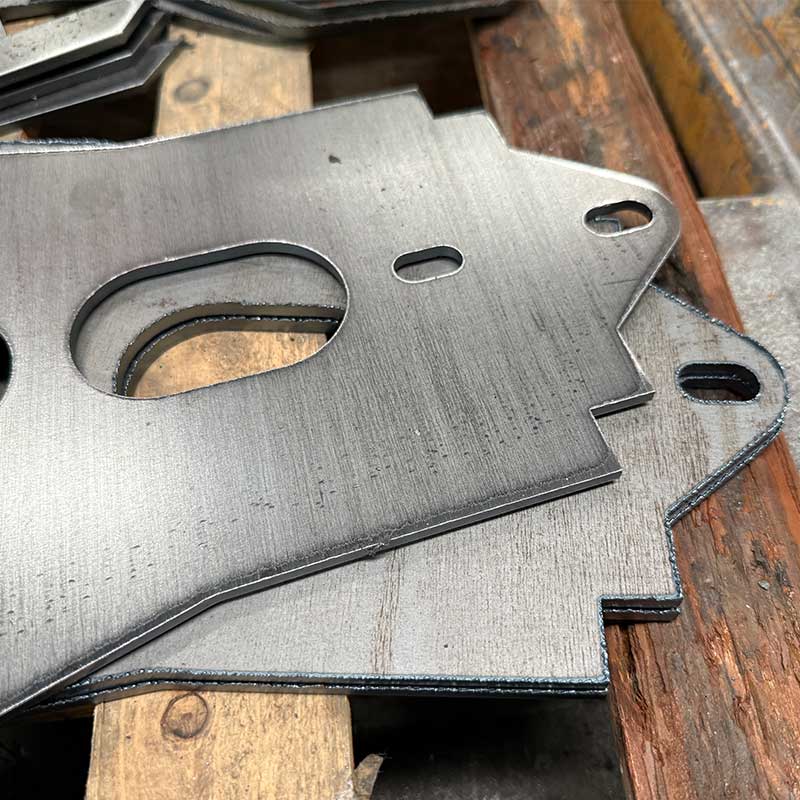

  Ideal parts:

Carbon steel, stainless steel, aluminum, and etc.

Thickness range: 1mm and up

Minimum part size (ferrous material): 30 x 30 mm
