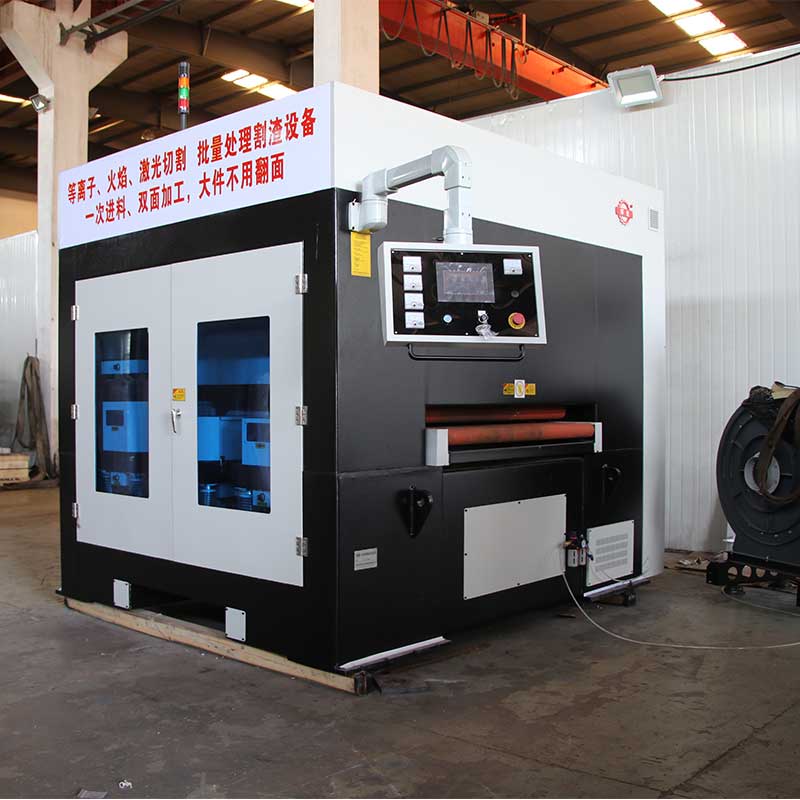

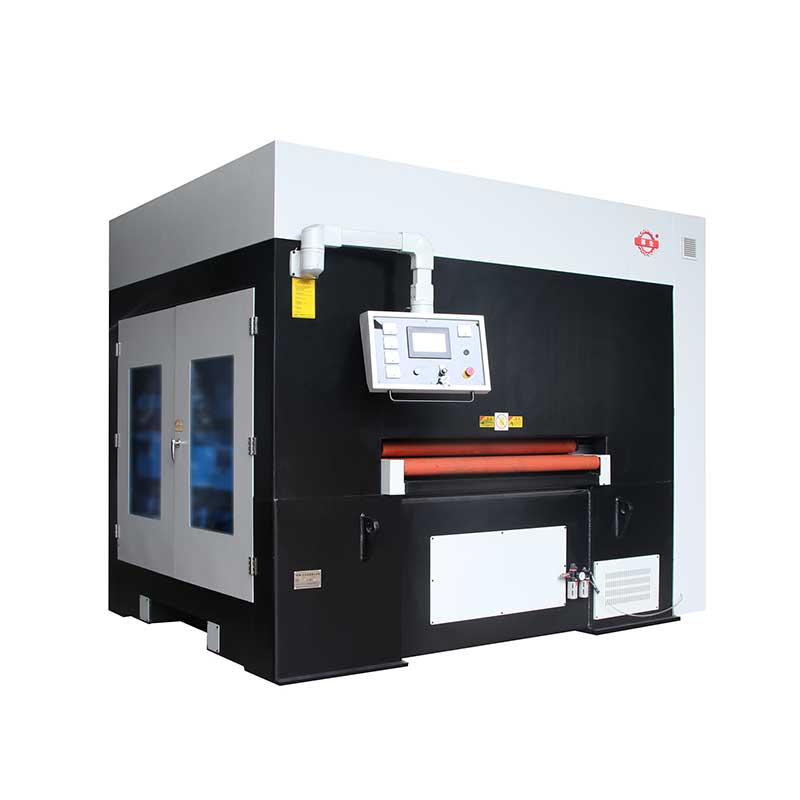

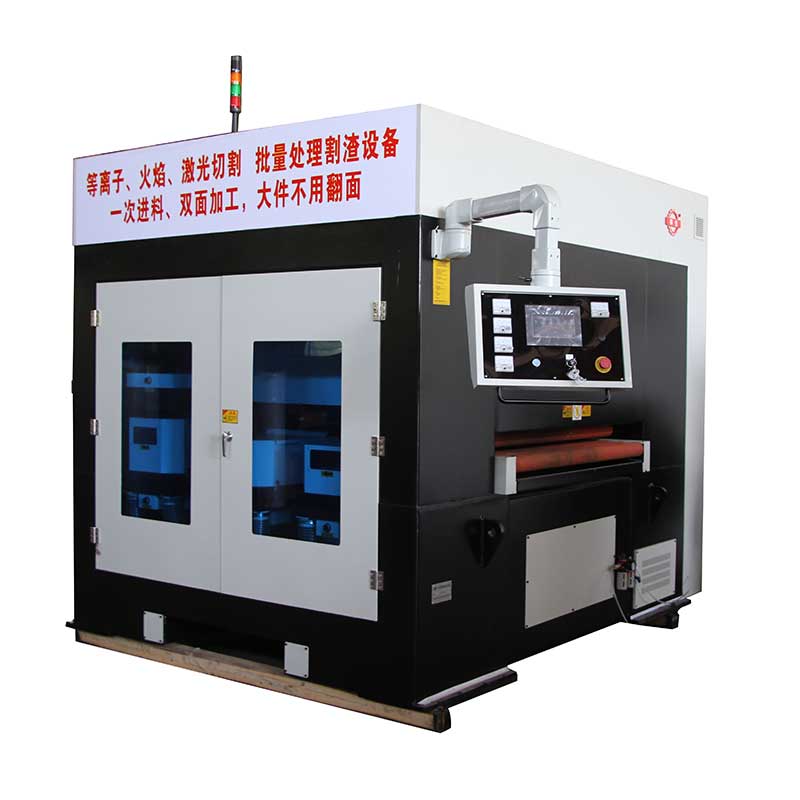

SG1300-3TB+B Excellent deslagging and edge rouding machine for plasma-oxy-fuel-cutting etc

  Applications :

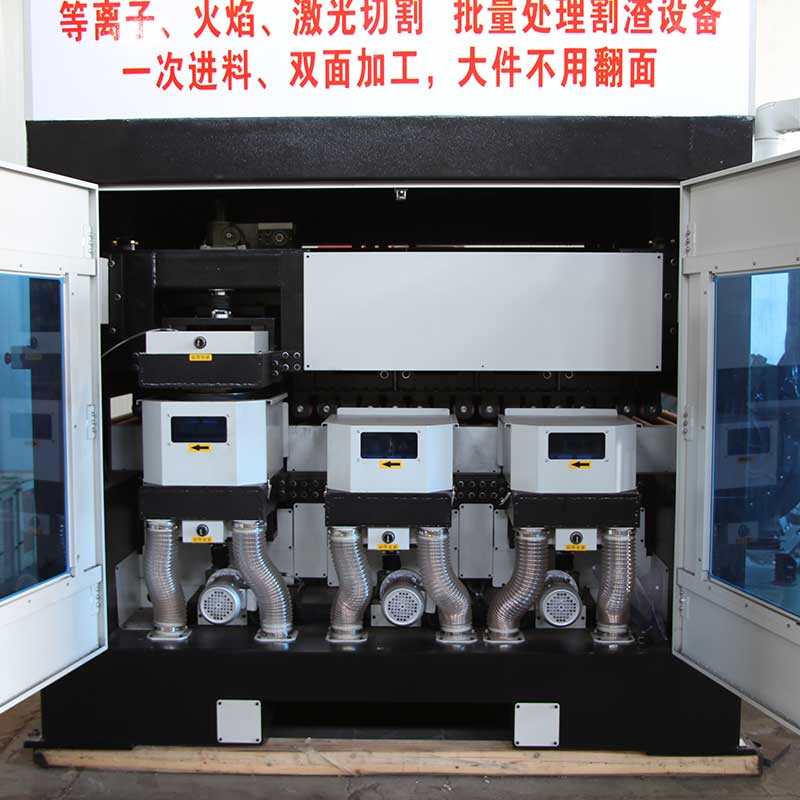

Double side de-slagging and edge rounding of parts coming off plasma, high power laser, flame cutting machines with slags and dross. Equipped with Jonsen patented carousel type cross belt station which features "one belt two passes" processing. This particular machine has 1300mm working width, and is equipped with three "top and bottom" cross belt stations. Hence parts' both top and bottoms sides can be processed simultaneously. The first two of the three cross belt stations are mounted with numerous high hardness ant-wear metal alloy pin blocks. The rotating cross belts basically mimic the motion of "hammering and chiseling" off the slags. The third cross belt is mounted with abrasive blocks that is made of dense sand paper and Scotch Brite flaps. It further cleans and rounds the edges and holes so it is not sharp.

  HIGHLIGHTS

• Double side processing, hence heavy parts after cutting (slags facing down) does not need to be flipped

• Feed through type, parts batch processing

• Heavy duty pinch rollers to ensure parts firmly clamped while feeding

• Minimum metal dust exposure with proper dust extraction system installed

• Essential rollers are properly balanced, high rotational speed rated bearings are equipped

• Workstation configuration is flexible. Various of types consumables are available

  Common consumables:

Pin blocks, abrasive blocks

  Ideal parts:

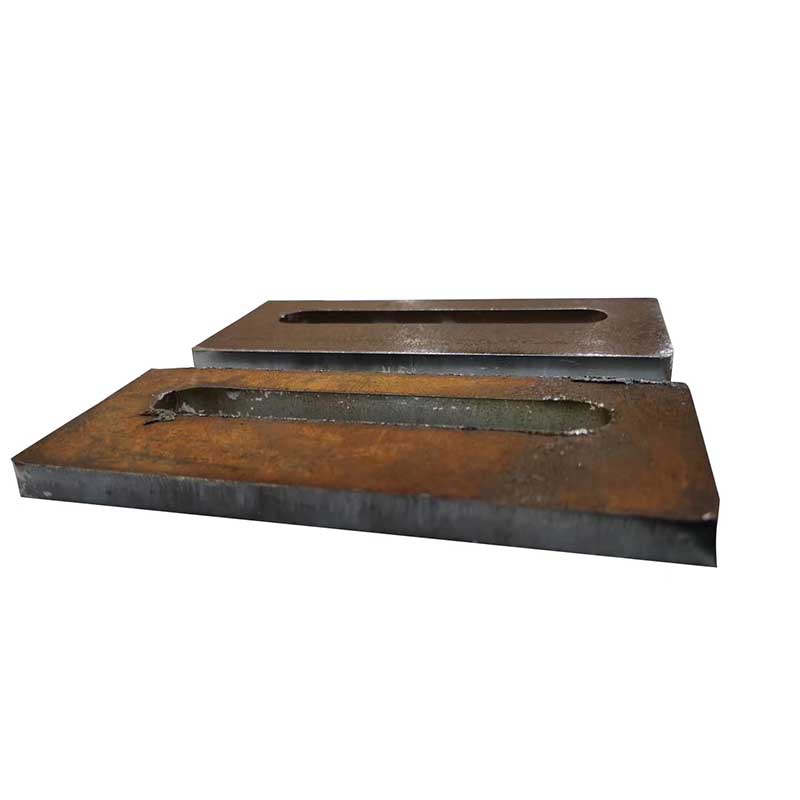

Steel parts batch processing after cutting

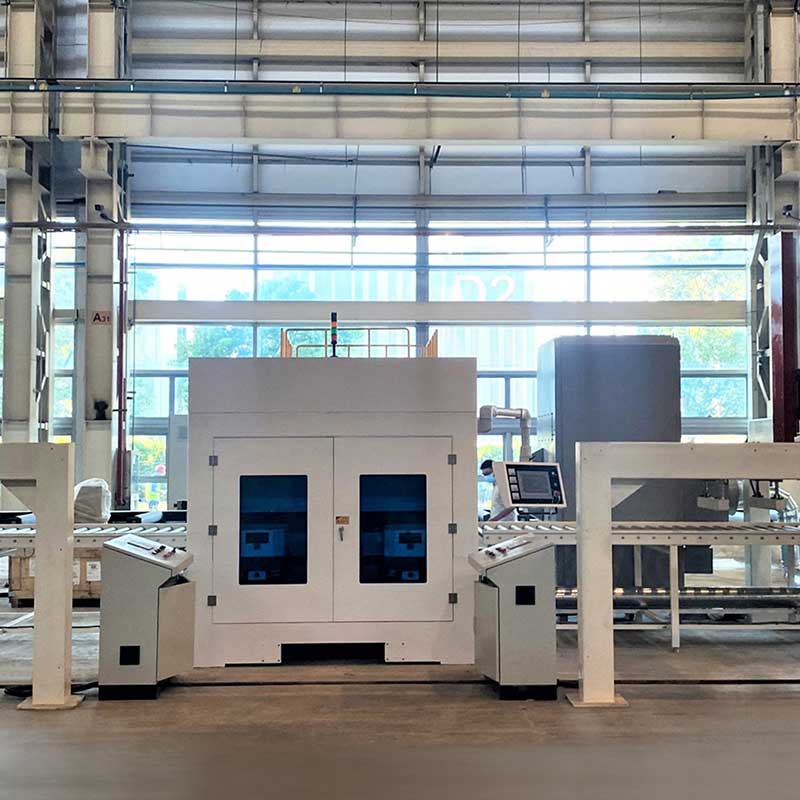

  Automated machine line example :

Main machine, automated material handling including loading, off-loading, and extension conveyors
