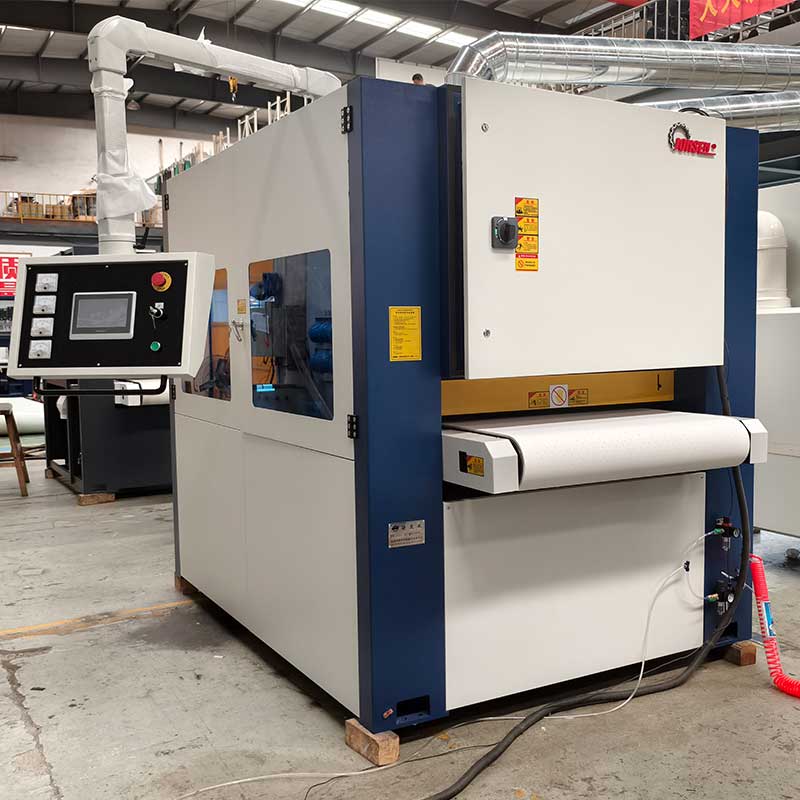

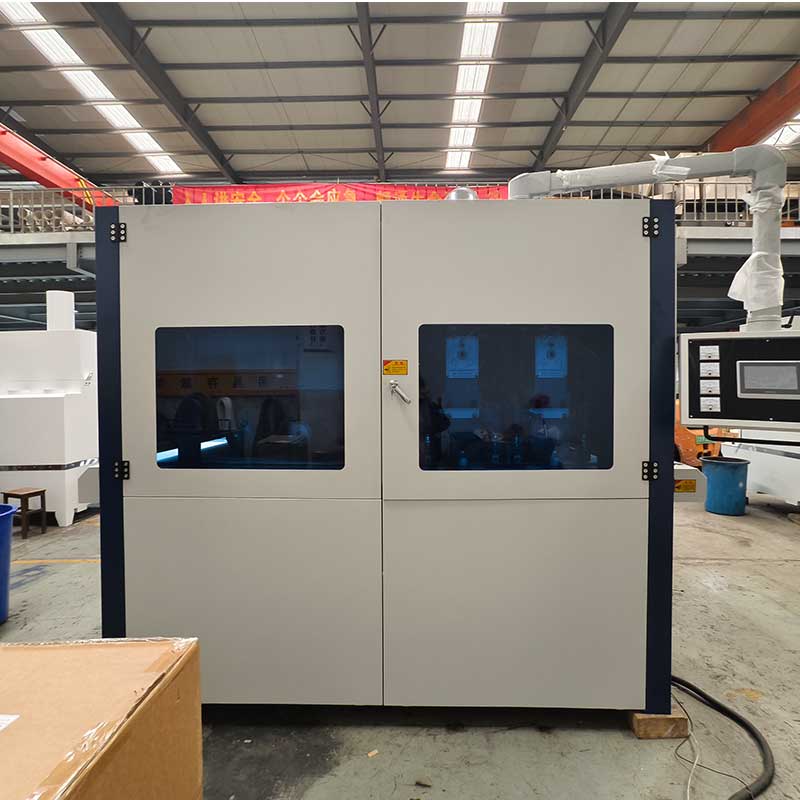

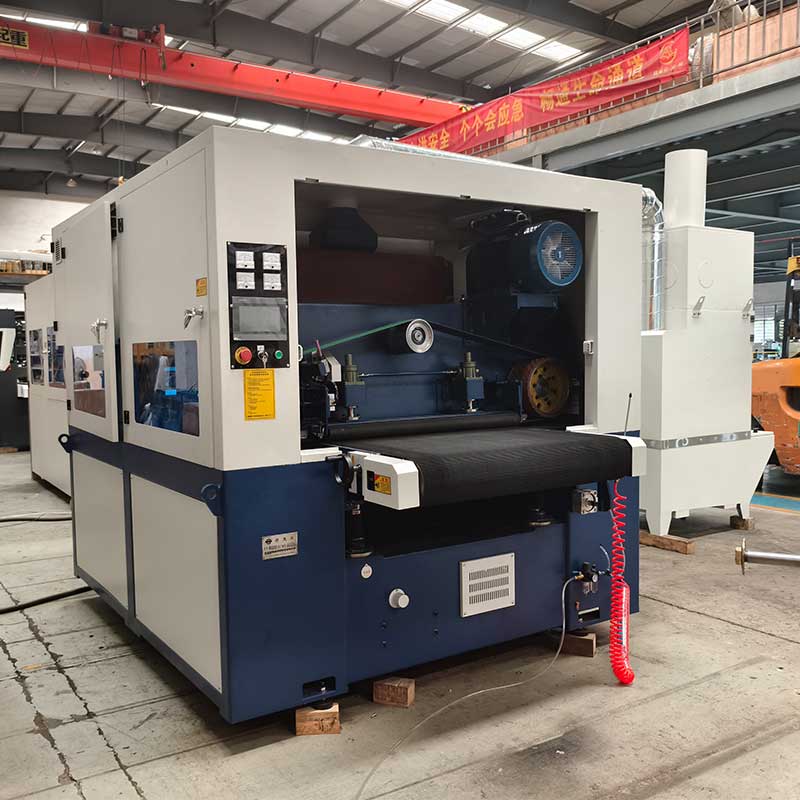

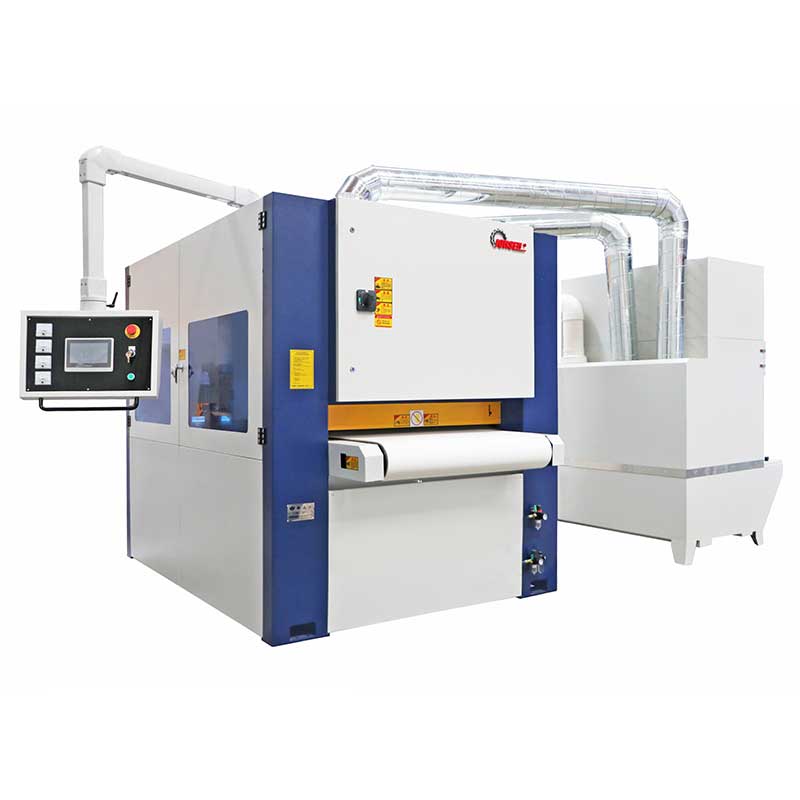

SGGP1000 Efficient metal deburring,edge rounding and finishing machine for laser air cutting

  Applications :

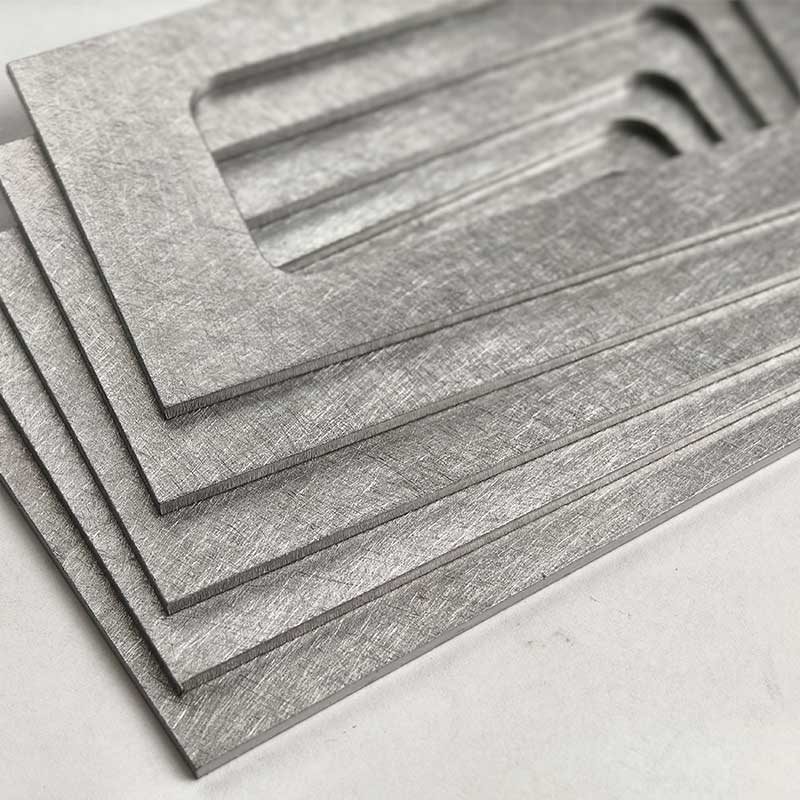

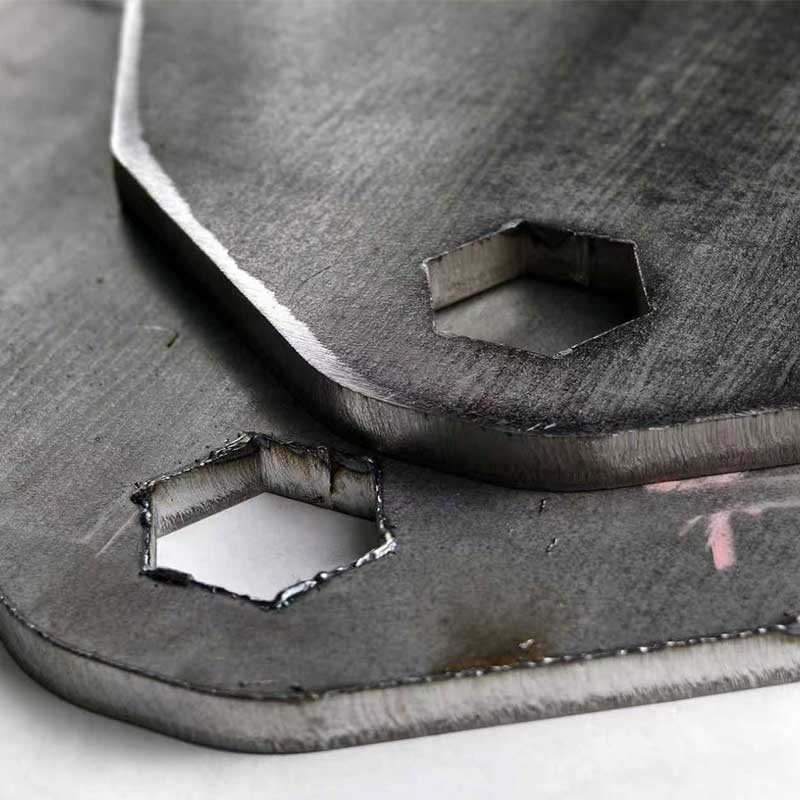

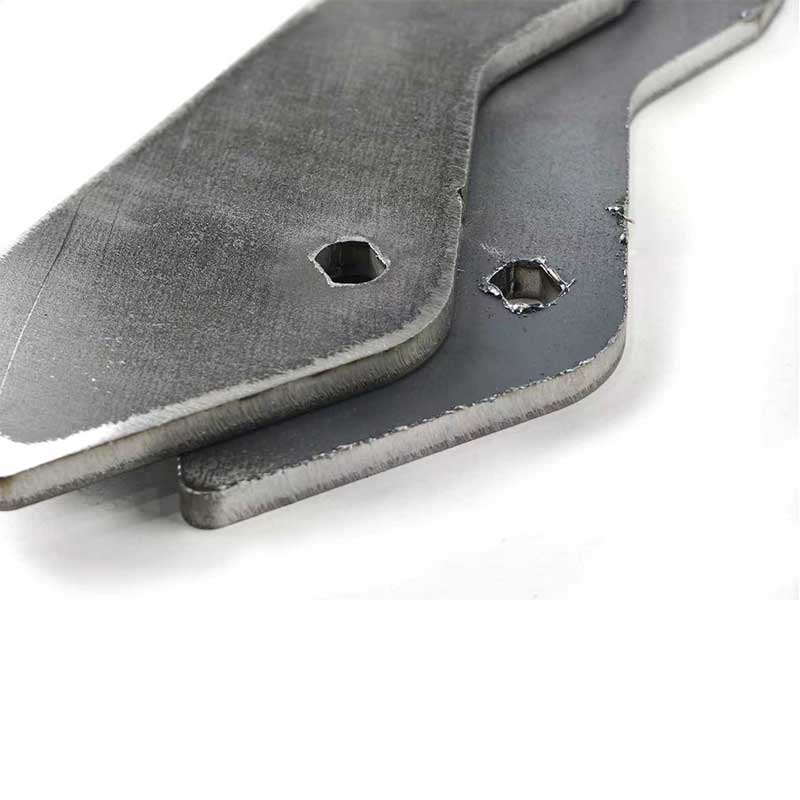

SGGP1000 is a very versatile machine model. The two wide abrasive belt heads are capable of sanding down and removing the bigger burrs on the parts, or using it for whole surface finishing purpose such as No.4 finishing. The planetary abrasive barrel station that consists of four abrasive barrels will further rounds the edges and the contours. It is suitable for parts from laser cutting, punching, shearing, and etc, generally with small/medium burrs and sharp edges. It produces much more consistent result of deburring and edge rounding in significantly higher efficiency than using manual tools. There will be no more metal dust just dispersing into the air, which will be efficiently extracted from the machine.

  Highlights:

• Dry operation

• Two wide abrasive belt head for sanding out the burrs or surface finishing

• Planetary type abrasive barrel station for further edge rounding, 4 or 6 abrasive barrels, and planetary rotation

• Vacuum conveyor table to accommodate small parts, smallest parts available 60x60mm

• Planetary abrasive barrel station will only focus on the edges and contours of the parts, minimum effect on the whole surface

• Capable of processing minor formed/profiled parts

• Long life span of consumables

• Straight forward and user-friendly operation

• Auxiliary LED lighting inside machine

• Dust collection hood is installed inside the machine.

  Optional configuration:

1. Model SP1000. It does not have wide abrasive belt head. It is suitable for parts with good cutting quality with only minor burrs and sharp edges

2. Additional wide abrasive belt head(s) on the back for straight line surface finishing is available, for example 1 wide abrasive belt head after the planetary abrasive barrel station

3. Working width of 1300mm/1500mm is available

4. For customers whose parts are mostly small iron components, we recommend selecting a magnetic conveyor table.

  Ideal parts:

1. Carbon steel, stainless steel, aluminum, copper, and etc.

2. Parts with protective vinyl film (machine will not damage the film, therefore protect the surface underneath)

3. Working thickness range from 0.8mm-50mm

4. Carbon steel parts that require large radius on the edges
