Applications:

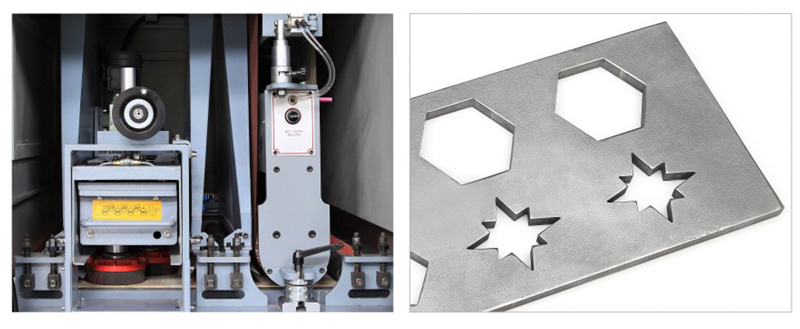

SG1030-JS+D would be best suitable for deburring, edge rounding, as well as surface sanding and finishing of punching, shearing, laser cutting parts. It is equipped with 2 work stations: a wide abrasive belt head and a zig-zag disk brush station.
Machine characteristic overview:
Dry operation, therefore low production and maintenance cost. The machine usually has a long life which means the return on investment is high
Conveyor feed through type, high efficiency
First wide abrasive belt head for initial sanding, and zig-zag disk brush station for deburring and edge rounding. Each station can work individually or together
Other combinations of work stations are also available
Optional magnetic or vacuum conveyor bed to accommodate and process small parts
Straight forward and user-friendly operation
Auxiliary LED lighting inside machine
Dust collection hood is installed inside the machine
Ideal parts:
1. Most of metal material type
2. Thickness range: 1mm-80mm
Optional configuration |
1. Magnetic or vacuum conveyor bed to accommodate and process small parts. |
2. Wide abrasive belt head and zig-zag disk brush station for strong deburring/de-slagging/edge rounding. |
3. A combination of wide abrasive belt heads and polishing barrels is available for surface finishing such as No.4 and Hairline. |
4. A combination of wide abrasive belt heads, zig-zag disk brush station, and polishing barrels is available. |
5. Maximum working width available is 1280 mm. |
6. Dust collector. |
Technical Datasheet | |||
Maximum working width | 1000mm | Consumables | Disk brushes (various type available), wide abrasive belt |
Minimum working length | 1-80mm | Disk brush station power | 7.5kw |
Conveyor feeding rate | 2-9m / min | Wide abrasive belt power | 11kw |
Disk brush dimension | ɸ165mm | Machine weight | 2800kgs |
Machine dimension | 1800x2300x2000mm | ||
