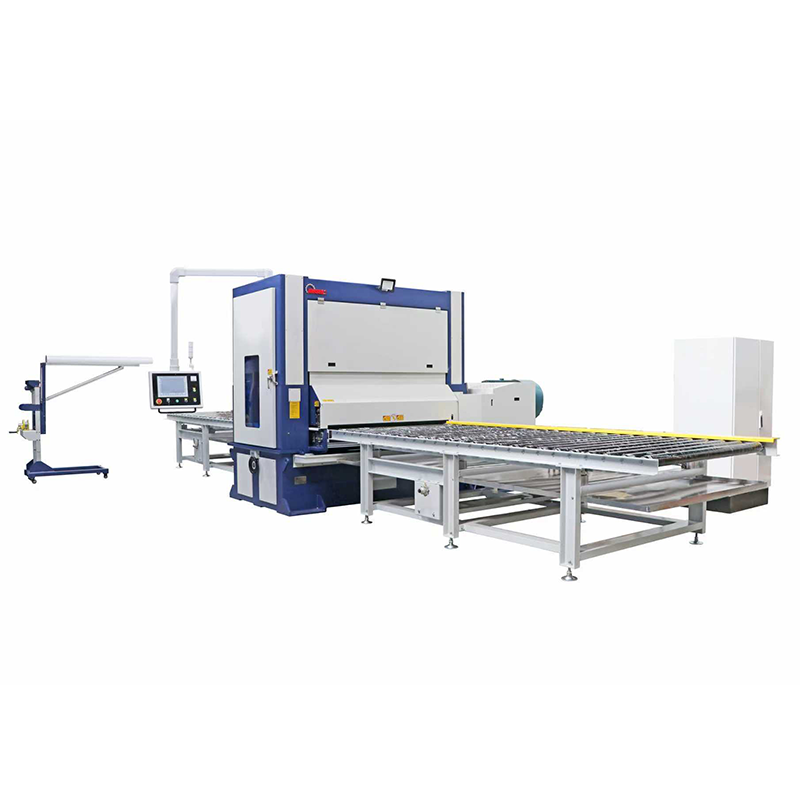

SG1600-WJS Wet type heavy duty metal grinding machine

  APPLICATIONS :

• The machine is specifically for heavy duty precise grinding, polishing, and stock removal applications of titanium, stainless steel, thick steel plate, and other special metals such as molybdenum alloy.

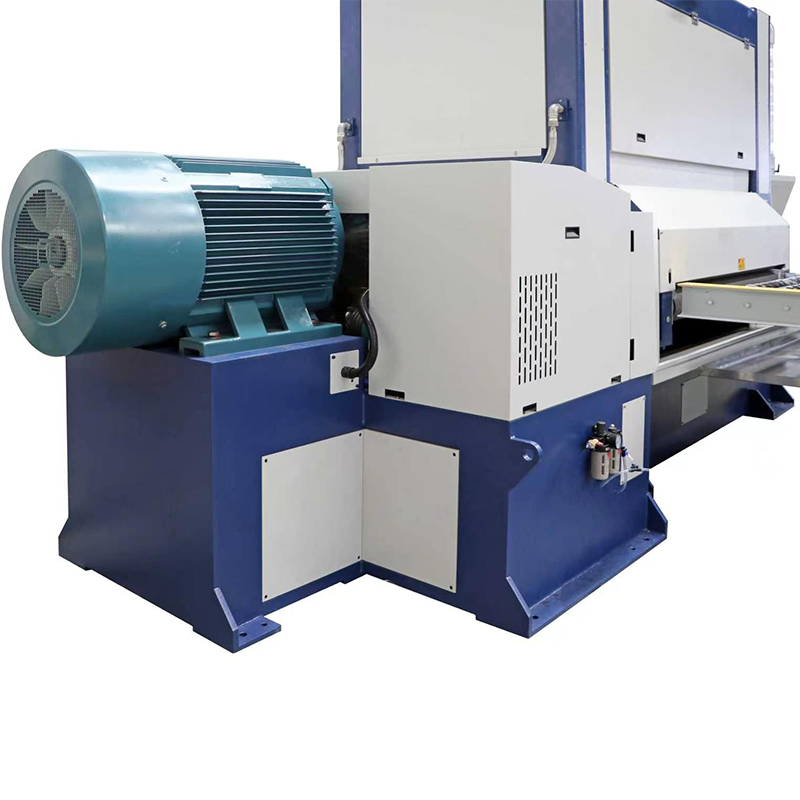

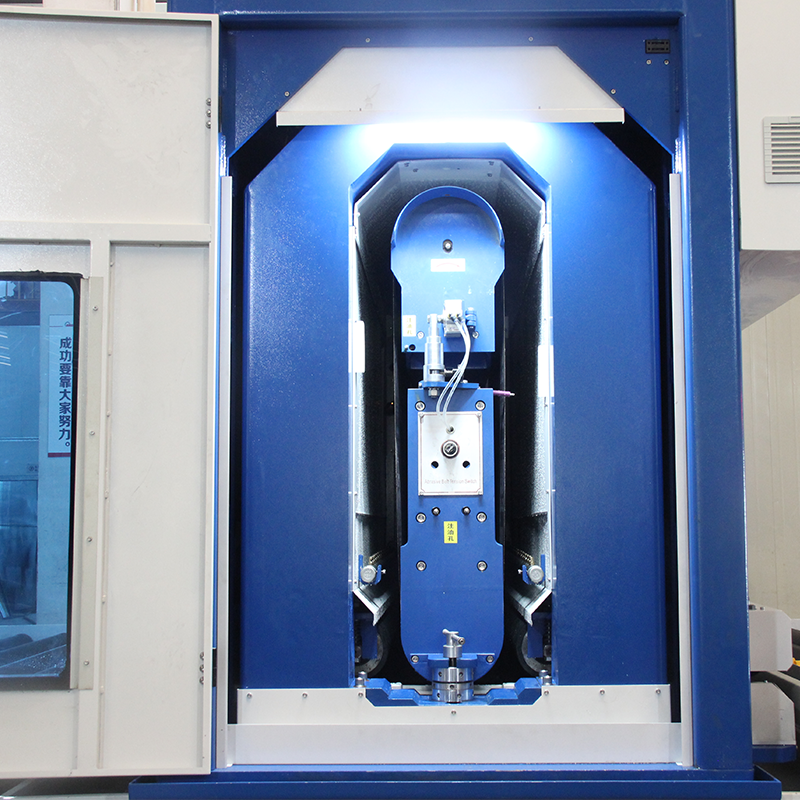

• A single wide abrasive belt head is rigidly constructed on the machine gantry frame with heavy power delivered to the contact roller, hence driving the wide abrasive belt.

• The conveyor rollers run in a reciprocating manner, in both directions. Therefore the parts can be fed through the machine multiple passes (the number of passes is programmable). The cutting rate/pressure is adjustable based on the type of material and operator's experience.

  HIGHLIGHTS :

• Wet operation, minimum deformation, finer surface quality

• Heavy duty pinch rollers to secure and "clamp" the parts firmly while processing

• A special bottom roller, Billy roller, is utilized underneath the main contact roller for optimum performance.

• Minimum working thickness: 0.5mm

• Main contact roller is equipped with Jonsen patented servo lifting system. It utilizes Mitsubishi servo systems to reach an excellent precision of +0.01mm

• Multiple stage filtration and recycling system (can be customized)

• Wide abrasive belt change-over assisting tool/hanger

• Self cleaning/spraying function inside the machine chamber

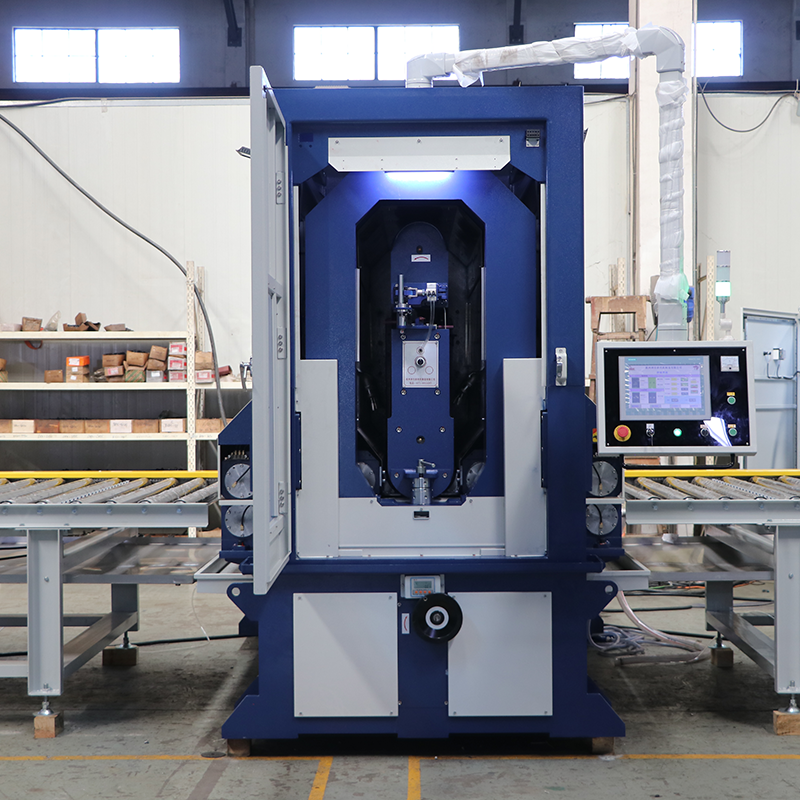

• Programmable Mitsubishi control interface with live load monitoring

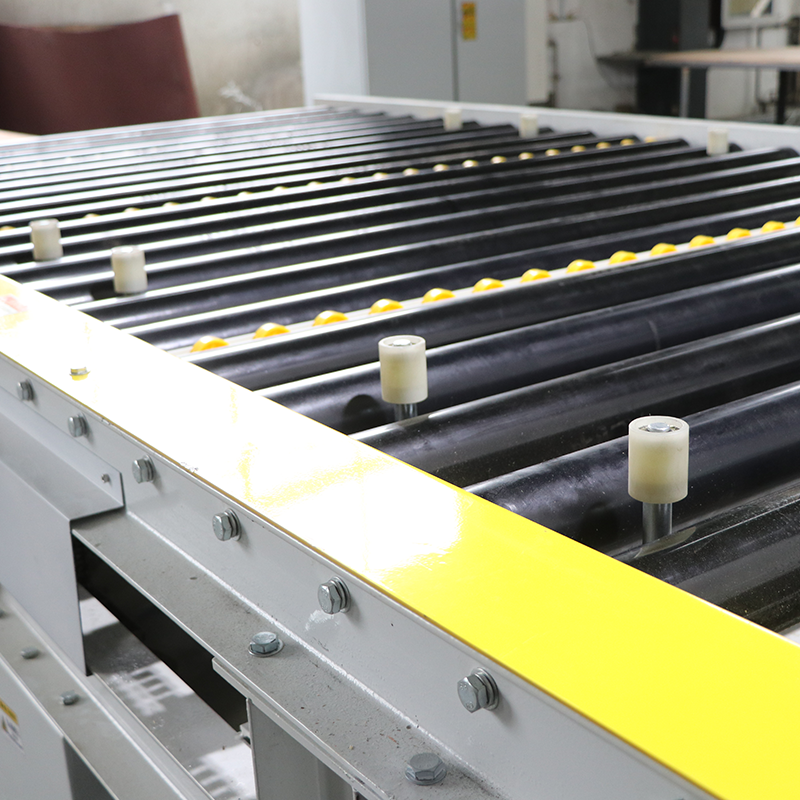

• Fixed conveyor table design to allow easier automation such as extension conveyors, material handling systems, and etc.
